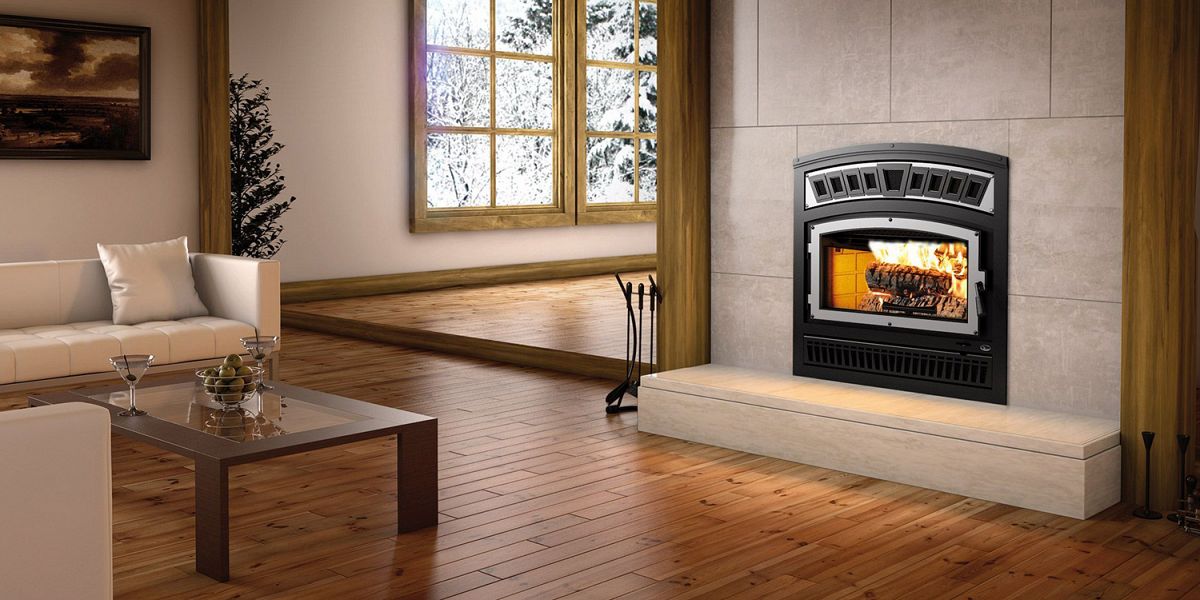

Valcourt FP10 Lafayette II
Valcourt FP10 Lafayette II Description
Like the great French general, the Valcourt team has been able to use its tactical skills to upgrade this non-catalytic fireplace, so that it perfectly combines modern heating technology with 21st Century elegance.

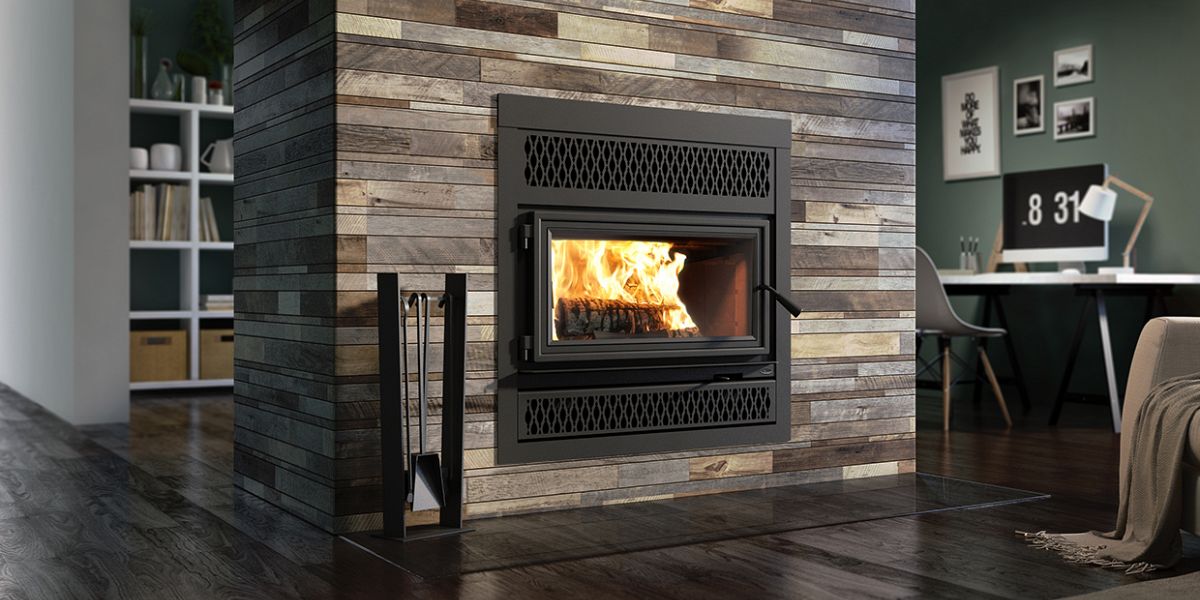

Customize your fireplace: the Lafayette II model has five faceplate louvers as well as black or brushed nickel door overlays are available to enhance your decor, while the Lafayette IIS model has a square, clean look.. In addition to offering these distinctive looks, this fireplace complies with the highest EPA standards, making it the fireplace of choice for those who want to use wood as a renewable and clean source of heat.
- Model # FP10 II
- High-efficiency EPA certified fireplace
- Recommended Heating Area (sq. ft.) : 750 - 2200
- Premium quality convection blower included (CFM) : 176
- Color : Metallic black
- Glass air-wash system
- Optimum Efficiency : 74%
- Emissions : 1.14 g/h
- Stainless-steel secondary-air system improving gas combustion
- Burn rate : < 1kg/h (< 2.2 lb/h)
- Burn time : 8 h
- Moulded refractory bricks
- Recommended connector pipe diameter : 6" / 7"
- Tested and listed as per applicable standards by : An accredited laboratory
| Firebox – dimension (Width) | 20 3/8" |
|---|---|
| Firebox – dimension (Depth) | 12 7/8" |
| Overall dimension (Height) | 40 5/8" |
| Overall dimension (Width) | 36 3/4" |
| Overall dimension (Depth) | 28 3/8" |
| Door opening dimensions (Height)) | 10 1/2" |
| Door opening dimensions (Width) | 25 3/8" |
| Energetic power | 75,000 BTU/h |
| Maximum output - EPA test cordwood | 80,000 BTU/h |
| Minimum chimney height (feet) | 15 |
| Maximum log length | 20" |
| Shipping weight | 493 lb (224 kg) |
| Glass surface – dimensions (Width X Height) | 12 5/8" x 24 3/8" |
| Type of chimney | 2100 °F (ULC S629/UL 103 HT) |
| Product Type | Wood |
| Door Type | Single, glass with steel frame |
| Glass Type | Ceramic Glass |
| Firebox volume (cu. ft.) | 2.5 |
| Centre line of flue outlet to the back | 10 1/8" |
| Centre line of flue outlet to the side | 18 7/8" |
| Canadian standard (emissions) | CSA B415.1 |
| USA standard (emissions) | EPA Method 28 |
| Canadian standard (safety) | ULC S610 |
| USA standard (safety) | UL 127 |
| Recommended heating area (sq. ft.) | 500 - 2100 |
| Efficiency | 74% |
| Emissions | 1.14 g/h |
| Flue outlet diameter | 6" |
| Burn Rate | < 1kg/h (< 2.2 lb/h) |
| Burn Time | 8 h |
| Recommended connector pipe diameter | 6 / 7" |
| Warranty | Limited lifetime |
| Tested and listed as per applicable standards by | An accredited laboratory |
